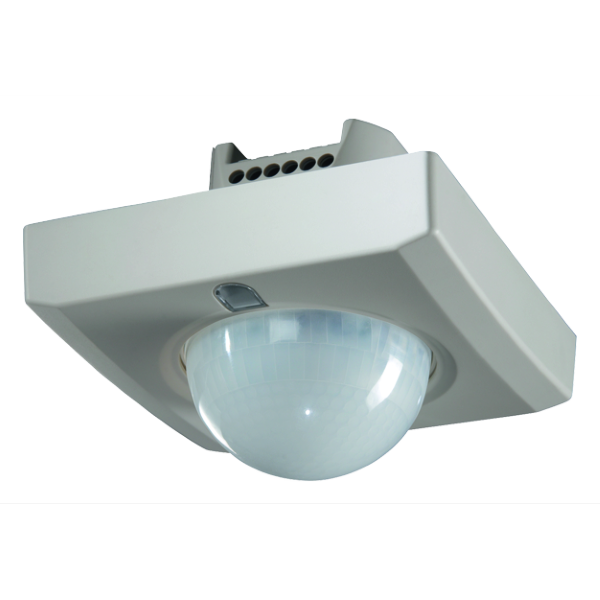

Cảm biến hiện diện SPHINX 104-360/2 DIMplus

■ Presence detector (PIR)
■ 2 channels for application areas class and conference rooms
■ Flush-mounted installation
■ Channel 2 presence dependent, e.g. for blackboard lighting with
programmable switch-off delay or for HVAC control
■ Channel 1 for constant light control (1-10 V)
■ Lighting control with adjustable light threshold value and adjustable switchoff delay
■ Additional pulse function can be selected for combination with staircase
timer (ELPA), building automation or PLC
■ Test function for checking detection area
■ Zero-cross switching
■ Automatic lighting control based on presence and brightness
■ Detection area can be limited using three enclosed segments
■ Mixed light measurement suitable for the control of fluorescent,
incandescent and halogen lamps
■ Instant start-up possible via factory preset
■ Push-button or for manual switching
■ Fully or semi-automatic: In “Fully automatic” mode, the lighting switches on
and off automatically according to presence and light In “Semi-automatic”
mode, it must be switched on manually and it switches off automatically
